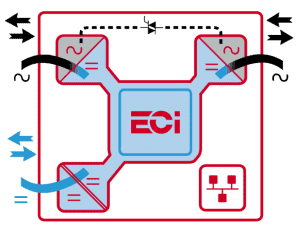

ECI Combines Three High-Efficiency Energy Converters And An Energy Buffer In A Single Module To Provide Polyvalent Power Conversion For Critical Systems At Up To 96% (AC/AC) And 94% (DC/AC & AC/DC) Efficiency.
AC Source
- Wide AC input 150 to 265 Vac
- Active power factor correction
- Full bidirectional converter
- 0 mS transfer time to DC in case of AC input failure
DC
- 94% DC/AC efficiency with double isolation
- DC batteries VRLA, NiCd, Liion Ultracap Fuel cells
- Optional MPPT ( Maximum Power Point Tracking) for direct connection to solar panel
![](https://heliosps.com/wp-content/uploads/2024/01/power-conversion-300x228-2.png)
AC LOAD
- Pure sine output
- Stabilized +/- 1%
- 0 leading to 0% lagging
- 2kW / 2,5 kVA
Communication
- Redundant com bus
- 32 modules in parallel on the same bus
BOOST
- Short circuit peak 10xIn for 20 mS on ACin
- 3xIn on DC/AC for 20 mS
For Any Power Conversion Scenario, You Might Be Thinking Of…

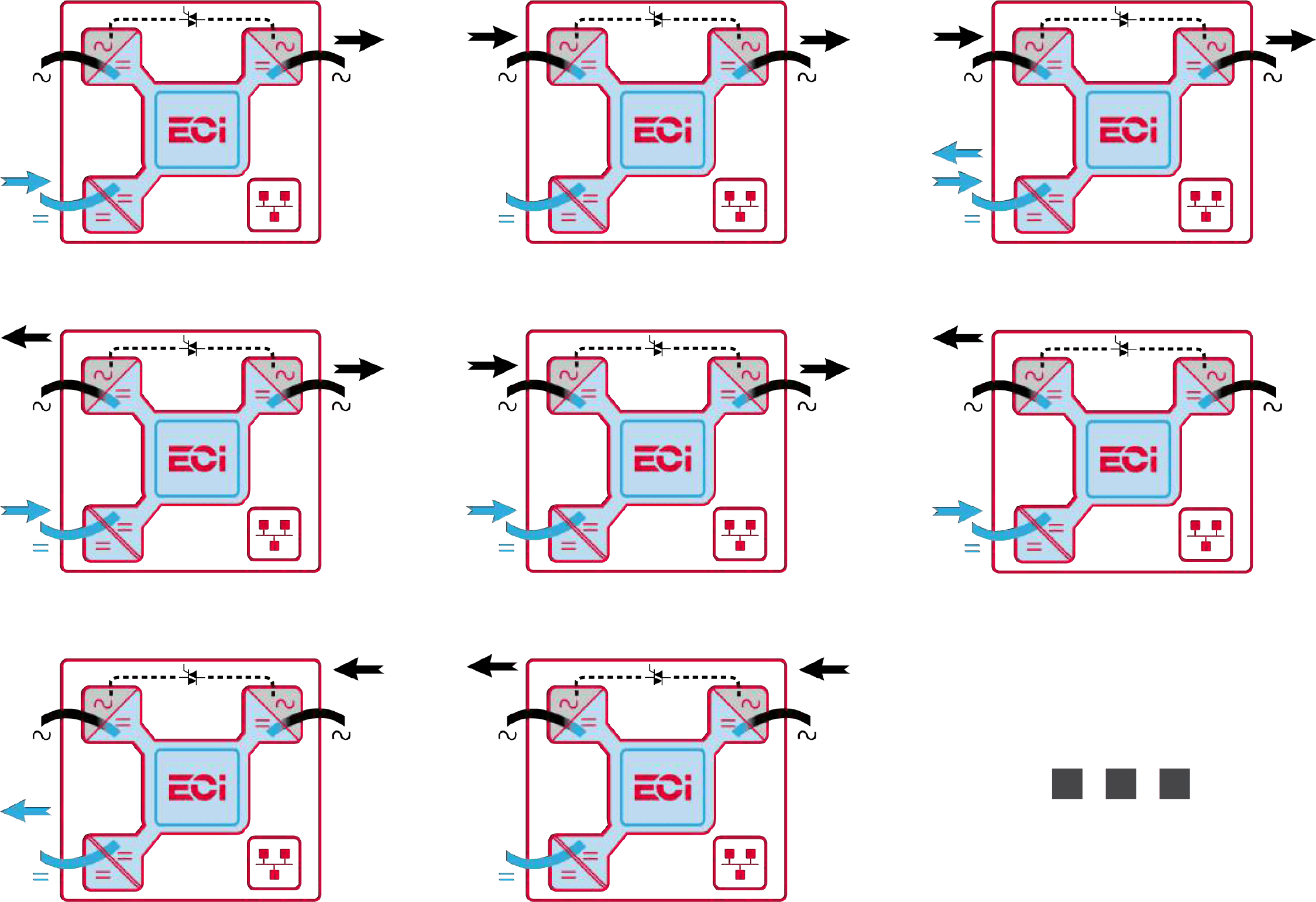

MULTIPLE CONVERSION POSSIBILITIES The ECI technology allows for the set-up of each conversion stage to work in one or two directions depending on the final usage of the product in which it will be integrated:- ACin, DCin and ACout only for inverter type applications
- ACin, DCin/out and ACout for UPS type applications
- ACin/out, DCin/out and ACin/out for multi conversion platform applications
- 94% ISOLATED DC/AC CONVERSION the most efficient DC/AC conversion on the market!
![](https://heliosps.com/wp-content/uploads/2018/08/power-conversion2-1024x702.png)
![](https://heliosps.com/wp-content/uploads/2018/08/TSI-vs-ECI-300x104.png)

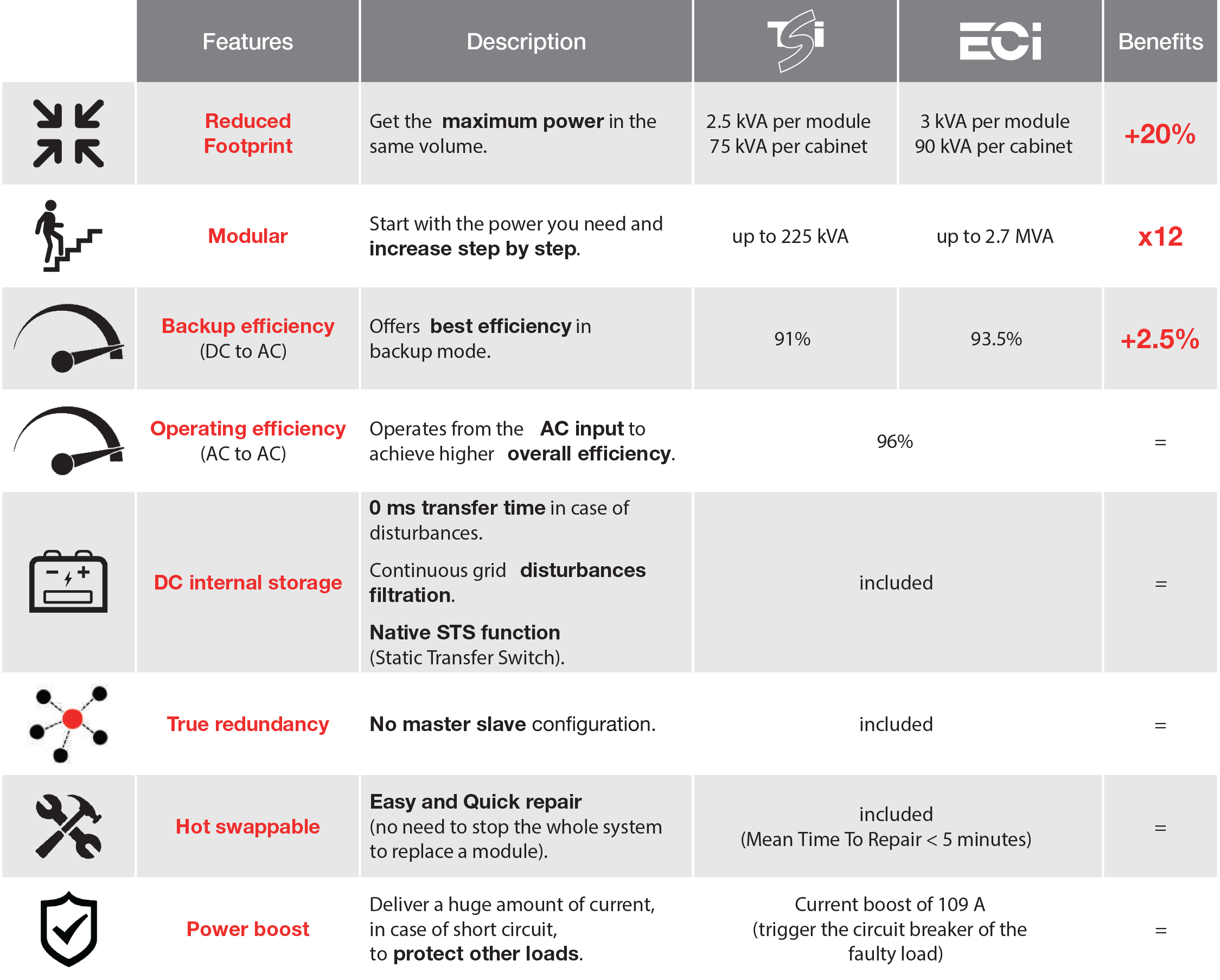

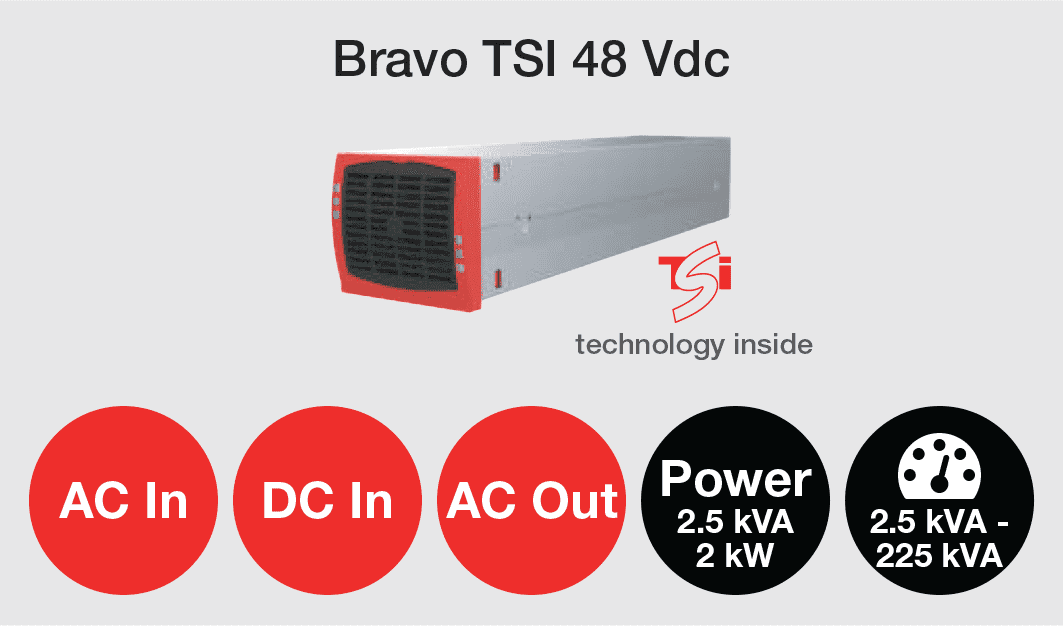

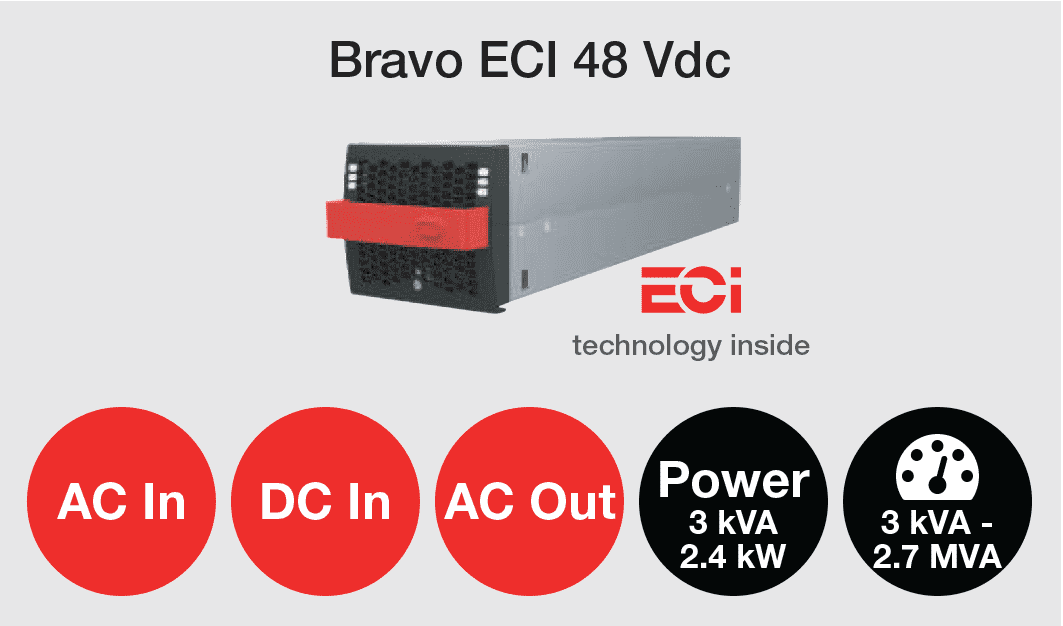

ECI Comes With Greater Efficiency, Reduced Footprint And Incredible Modularity While Retaining All The Benefits Of TSI.
![](https://heliosps.com/wp-content/uploads/2018/08/Bravo-TSI-1024x603.png)
![](https://heliosps.com/wp-content/uploads/2018/08/Bravo-ECI-1024x603.png)
![](https://heliosps.com/wp-content/uploads/2018/08/TSI-vs-ECI-chart-1024x823.png)
