Description
The MilQor series of Mil-COTS DC-DC converters brings SynQor’s field proven high-efficiency synchronous rectification technology to the Military/Aerospace industry. SynQor’s ruggedized encased packaging approach ensures survivability in demanding environments. Compatible with the industry standard format, these converters operate at a fixed frequency, and follow conservative component derating guidelines. They are designed and manufactured to comply with a wide range of military standards.
Operational Features
- High efficiency, 94% at full rated load current
- Operating input voltage range: 16-40 V
- Fixed frequency switching provides predictable EMI
- No minimum load requirement
- Available: High-Capacitance option for very large output capacitances and extreme transient applications
Mechanical Features

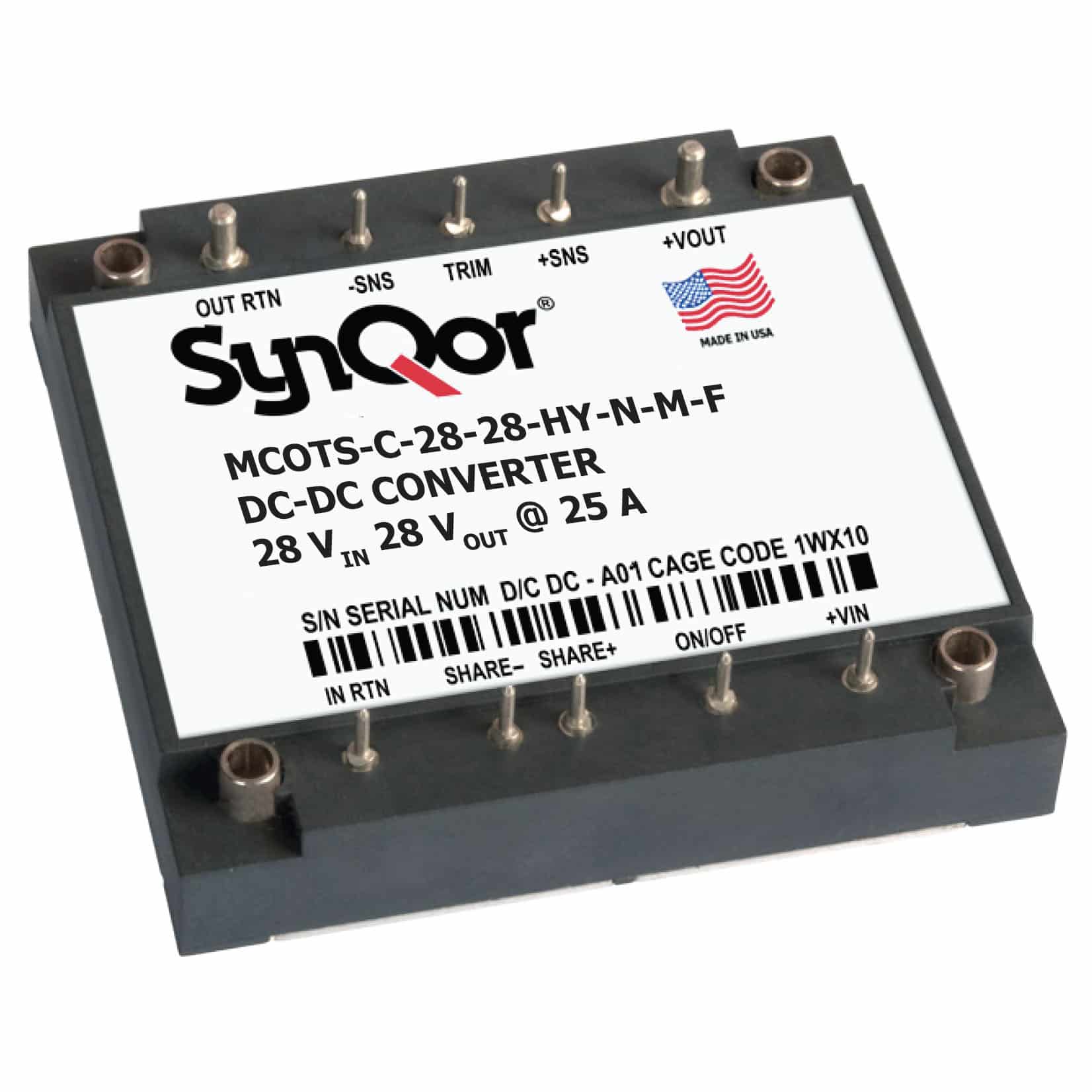

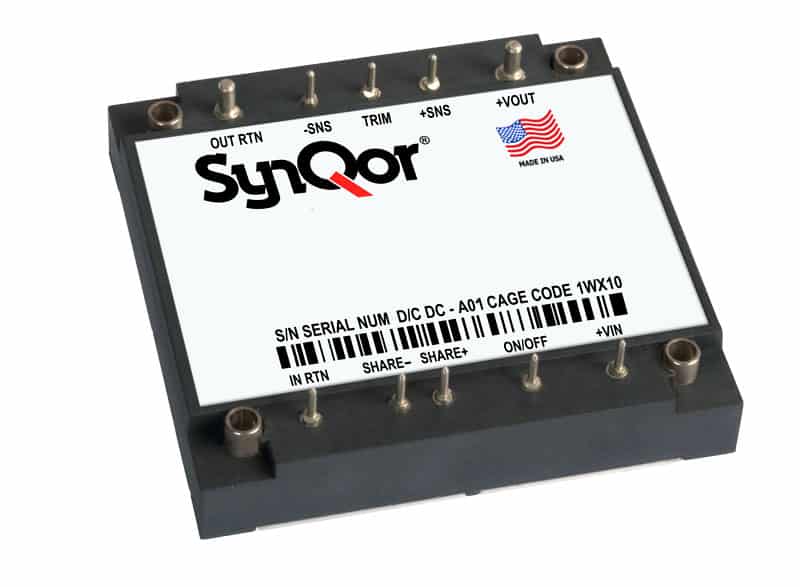

- Industry standard half-brick pin-out
- Size: 2.49” x 2.39” x 0.51” (63.1 x 60.6 x 13.0 mm)
- Total weight: 5.8 oz. (164 g)
- Flanged baseplate version available
Control Features
- On/Off control referenced to input return
- Remote sense for the output voltage
- Wide output voltage trim range of +10%, -50%
- Optional: Active current share for parallel applications
Safety Features
- 2250 V, 30 MΩ input-to-output isolation – Pending
- Certified 62368-1 requirement for basic insulation (see Standards and Qualifications page) – Pending
Protection Features
- Input under-voltage lockout
- Output current limit and short circuit protection
- Active back bias limit
- Auto-recovery output over-voltage protection
- Thermal shutdown
