Mil-Spec Isolated & Non-Isolated DC/DC Converters

For product guidance, customisation, or to find a solution that meets your specific technical requirements, please contact our Technical Sales Engineers.

Mil-COTS Isolated DC/DC Converters: 30W – 1000W

High efficiency, up to 95% at full rated load current
-55°C to +100°C Operating Temperature
No minimum load requirement
Fixed frequency switching provides predictable EMI
Helios is Synqor's partner in Australia, New Zealand & Middle East

Hi-Rel Isolated DC/DC Converters: 5W-120W

1.5V, 1.8V, 2.5V, 3.3V, 5V, 6V, 7.5V, 9V, 12V, 15V, 28V Single Output Voltage Options
± 5 V, ± 6.5 V, ± 12 V, ± 15 V Dual Output Voltage Options
Fixed switching frequency
No opto-isolators
Parallel operation with current share on MQFL
Helios is Synqor's partner in Australia, New Zealand & Middle East

Mil-COTS DC-DC Bus Converters

Delivers up to 65A @ full power with minimal derating
Operating input voltage range: 230-400V, 440-700V, and 800-1000V
Input under-voltage and over-voltage lockout protects against abnormal input voltages
-55°C to +100°C Operating Temperature

MCOTS-N HV, Non-Isolated DC-DC Converters up to 2000W

Wide input voltage ranges: 9-60V & 9-90V
Wide output voltage ranges: 0-60V & 0-90V
Ultra-high efficiency up to 97%
Output current limit is externally controlled for constant-current charging
Current can be set with an external resistor or an active circuit
Output voltage set-point is independently controlled through trim pin

Mil-COTS Quad Output Non-Isolated DC-DC Converters

High efficiency, up to 93% at full rated load current
Delivers up to 30A on each positive output and 1A on the negative output
Input voltage range: 6-15VDC
Output Voltage Range: positive outputs: 0.8V to 5V,negative output: -3.0V to -13.5V
Suitable for use in traditional Distributed Power Architectures (DPA)

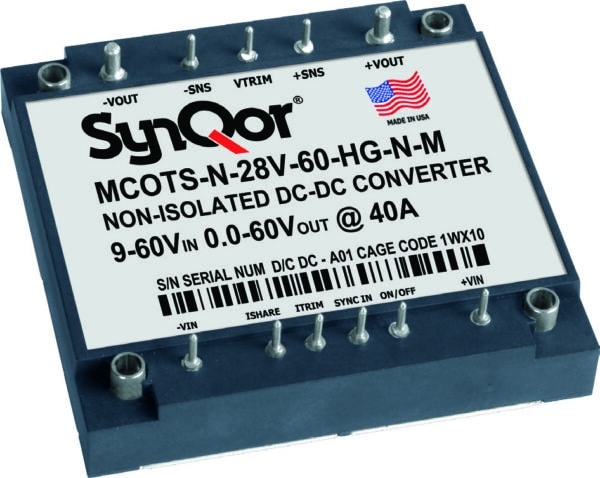

MCOTS-N-28V-60-HG DC-DC Converter

The MCOTS NiQor® half-brick DC-DC converter is a non-isolated buck-boost regulator which employs synchronous rectification to achieve extremely high conversion efficiency. The High Input Voltage MCOTS NiQor Brick family of converters can be used in traditional DPA (distributed power architecture) systems or provide a regulated output voltage from a battery source or other variable voltage source. The MCOTS NiQor Brick family can be configured to Buck the input voltage down to a lower voltage or Boost the input voltage up to a higher voltage using a single external resistor.

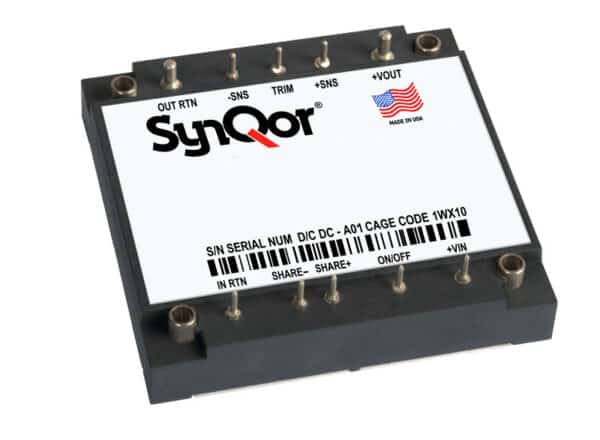

MCOTS-C-28-28-HY DC-DC Converter

The MilQor series of Mil-COTS DC-DC converters brings SynQor’s field proven high-efficiency synchronous rectification technology to the Military/Aerospace industry. SynQor’s ruggedized encased packaging approach ensures survivability in demanding environments. Compatible with the industry standard format, these converters operate at a fixed frequency, and follow conservative component derating guidelines. They are designed and manufactured to comply with a wide range of military standards.
